Easy Gripper Loader
Handling AGRO and EM/OTR tyres and wheels with front loader
Secure and firm 3-point grip
Improves the ergonomic working environment
Simplifies mounting and dismounting of tyres and wheels
Easy to adjust tyres and wheels in relation to hubs and bolts
With Flat Top Arm as standard for limited tyre clearance
Save time. Improve safety.
Improve safety and efficiency
The Easy Gripper Loader makes it safe and easy to handle AGRO and EM/OTR tyres and wheels. It eliminates the need for heavy manual labour such as lifting, pulling and pushing, thereby reducing the risk of both workplace accidents and strain injuries.
The Easy Gripper Loader is a budget-friendly alternative to our more advanced Easy Grippers – without compromising on safety or efficiency.
Capability
The Easy Gripper Loader have a gripping range of Ø1.200 - 2.390 mm (47 - 94”) and a lifting capacity of 1.200 kg (2.646 lbs).
Downloads
Mobile Tyre Service

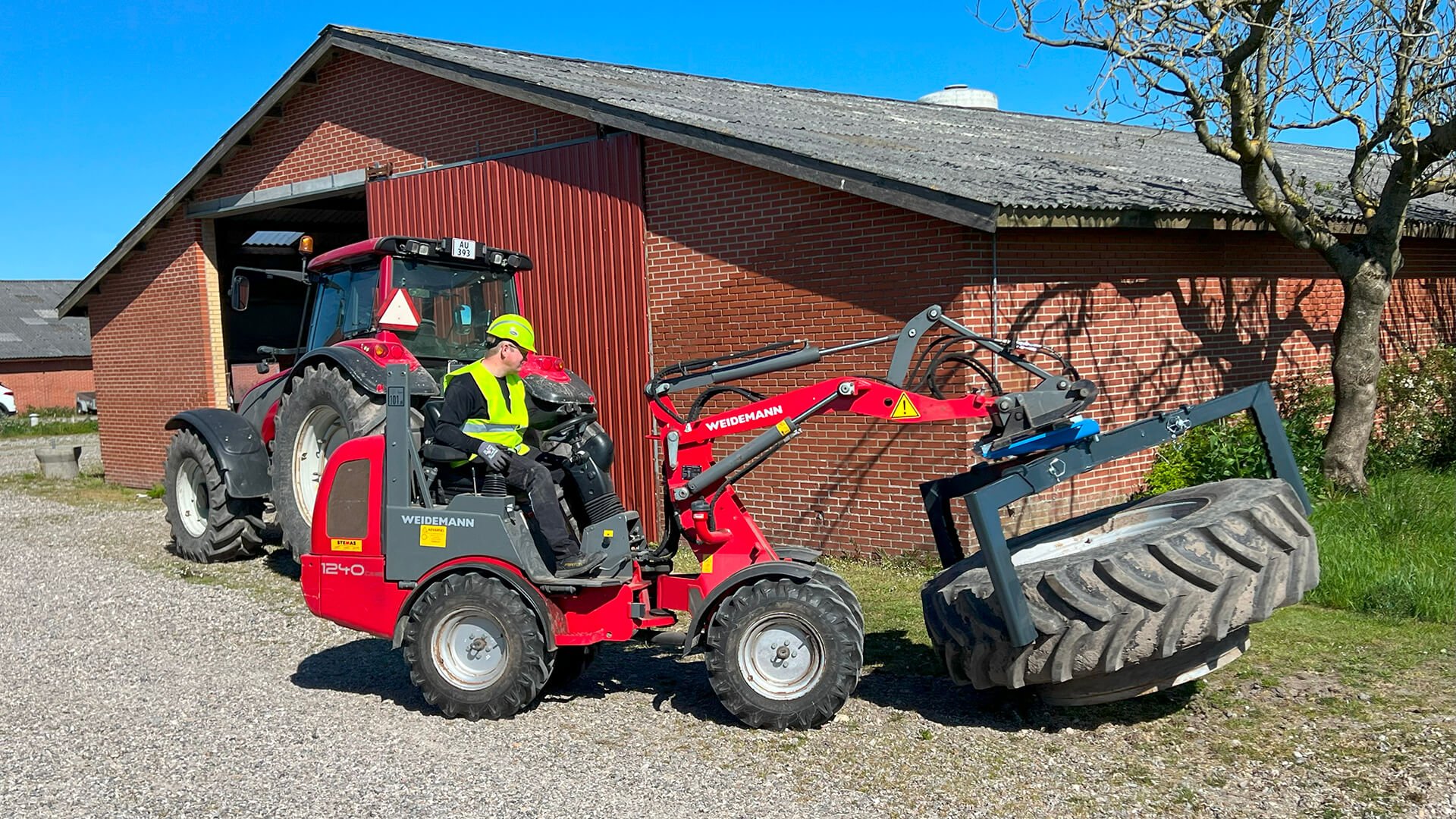

When mounted on a telehandler or front loader, the Easy Gripper Loader allows a single operator to carry out tyre service on-site - even in rough or uneven terrain.
Simplifies Mount/Dismount
The integrated +/-25° manual controlled rotation together with the tilt delivered by the carrier simplifies alignment of tyre or wheel with hub or bolts.
Efficient logistics

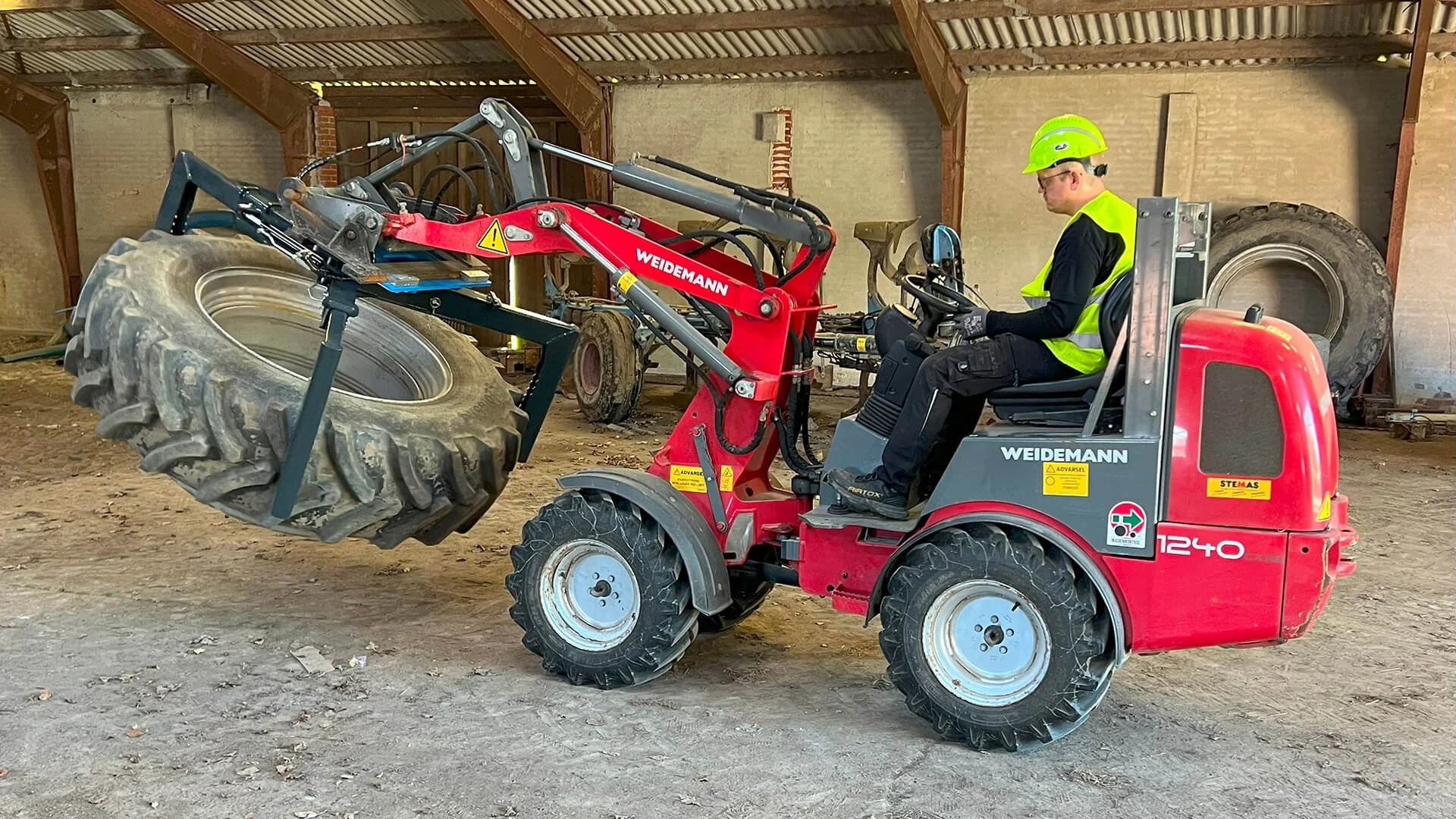

The Easy Gripper Loader handles tyres and wheels both vertically and horizontally, enabling fast loading and unloading as well as optimisation of storage options.
Quick connection and disconnection
The Easy Gripper Loader can be quickly connected to and disconnected from the carrier vehicle.
Tyre Handling in Any Terrain
The Easy Gripper Loader is especially suitable for tyre handling in areas with unpaved surfaces or directly in the remote field.
Interchangeable Gripper Arm Sets
The gripper arms are supplied as standard in two different set-sizes, covering the following gripping diameters:
1.200 - 1.800 mm (47 - 71”) - short gripper arm set
1.790 - 2.390 mm (70 - 94”) - long gripper arm set
A gripper arm set is supplied with a flat top arm, which makes it possible to grip a wheel when, for example, there is limited space between the tyre and the mudguard.
Standard included
The Easy Gripper Loader comes standard with a hydraulically controlled gripping function, manual ±25° rotation, a set of gripper arms with flat top arm in optional sizes, and is prepared for mounting on a standard ISO/FEM/ITA class 2 fork carriage.
Optional Accessories/customisation
Quick coupler attachment system for JCB, Manitou, etc.
Interface for mounting on a standard ISO/FEM/ITA class 3 fork carriage
Customisation on request.
Contact us
Technical specifications
Weight incl. Short Gripping Arm Set: 230 kg (507 lbs)
Weight incl. Long Gripping Arm Set: 250 kg (551 lbs)
Lifting capacity: 1.200 kg (2.646 lbs)
Mounting:
Standard: Prepared for ISO/FEM/ITA class 2 fork carriage
Specific quick coupler: On request
Technical Requirements
Hydraulic supply: 1 double acting circuit (A+B port)

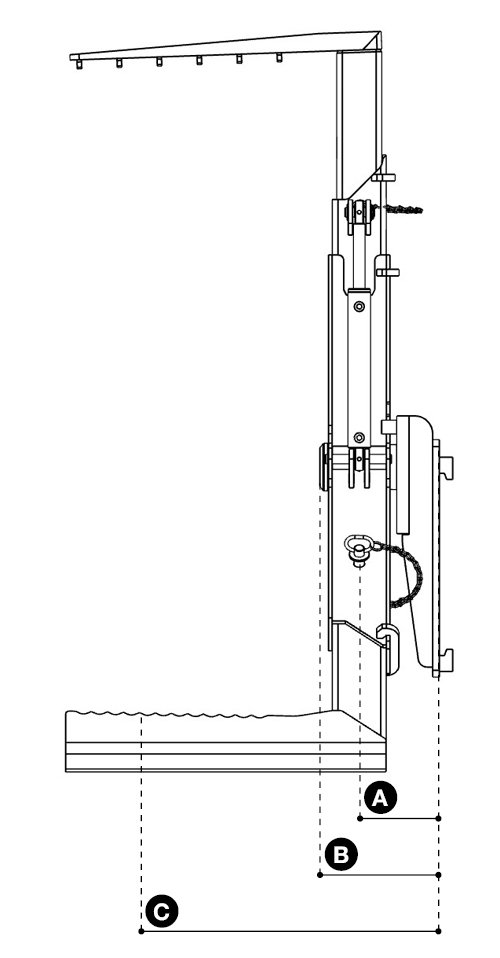

(A) CoG Gripper = 160 mm (6.3”)
(B) Face of Gripper = 250 mm (9.8”)
(C) CoG Load = 750 mm (29.5”)
Short Gripping Arms set diameter
(D) 1.200 - 1.800 mm (47 - 71”)

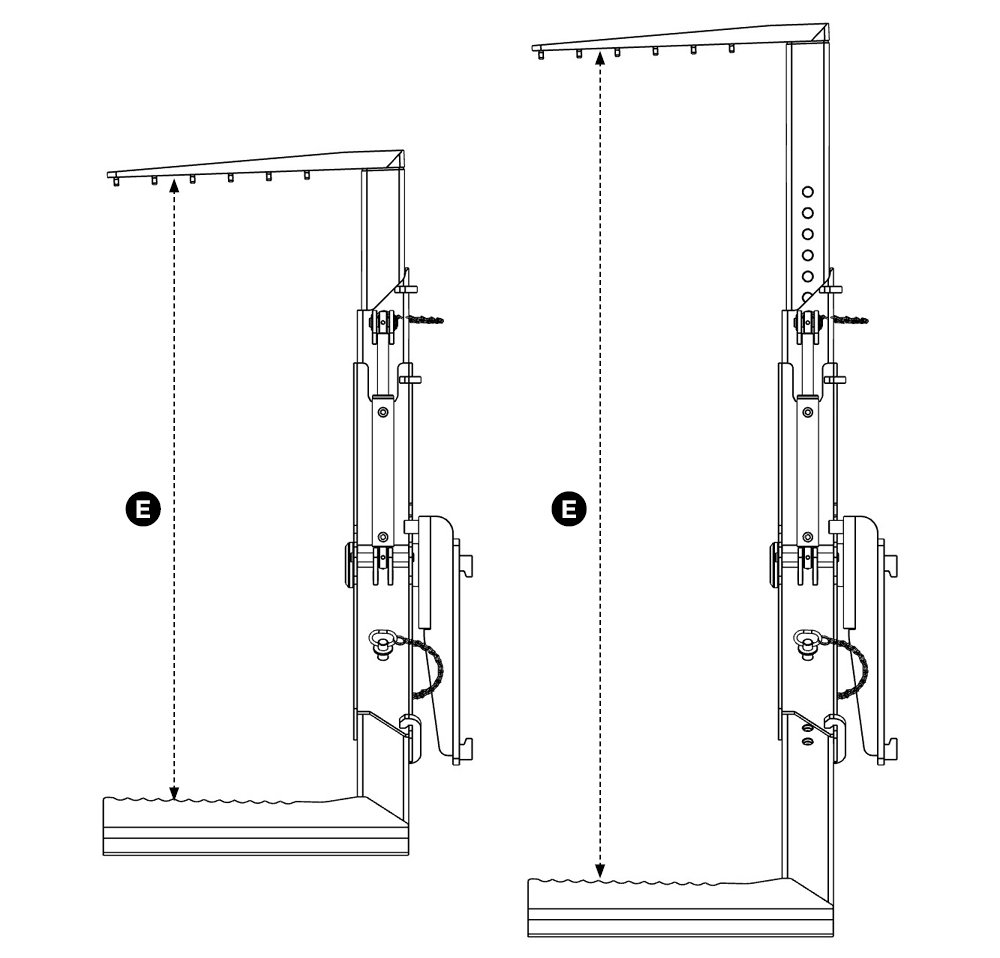

Long Gripping Arms set diameter
(E) 1.790 - 2.390 mm (70 - 94”)
Supporting tools and accessories
Even though the Easy Gripper is an incredible tyre handler / tyre manipulator, it can not do the entire tyre service job on it’s own. Therefore, we offer you following high-quality tools and accessories to support other parts of the tyre service processes.
